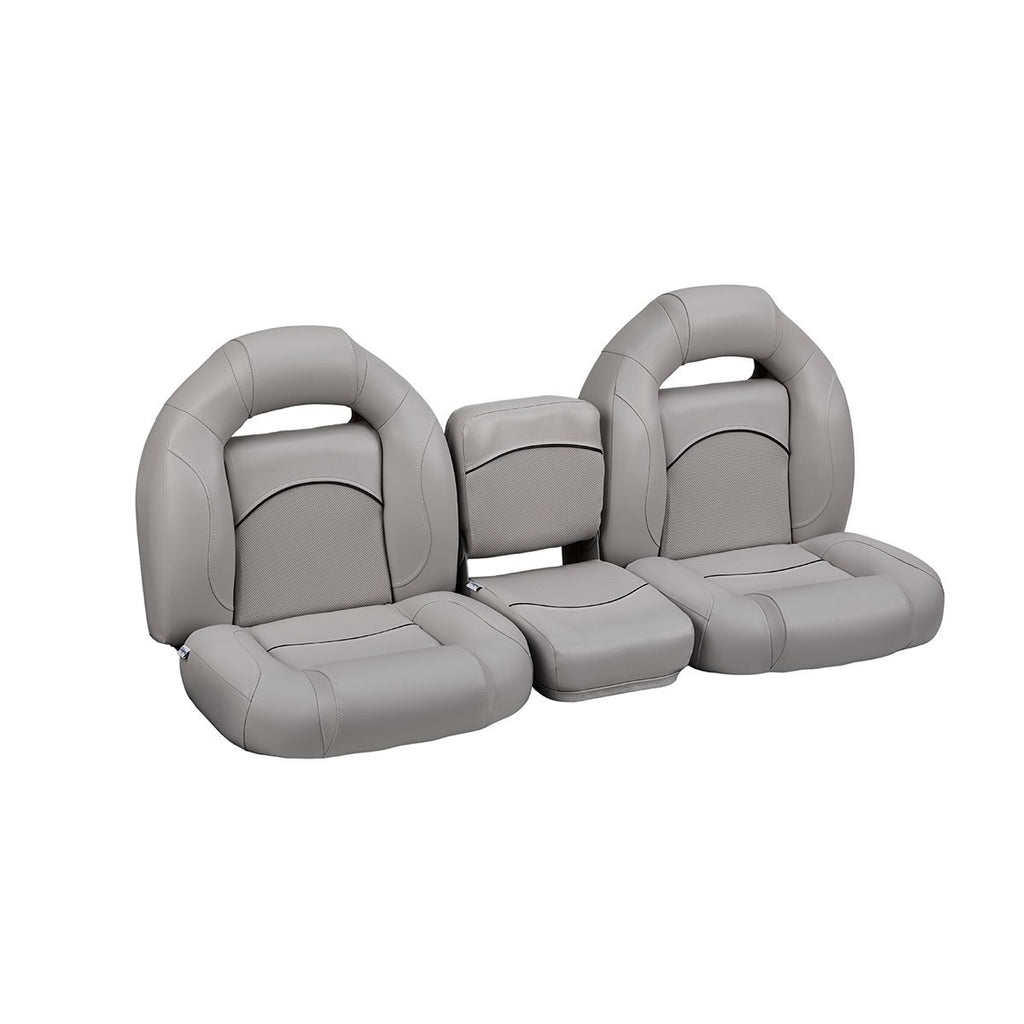

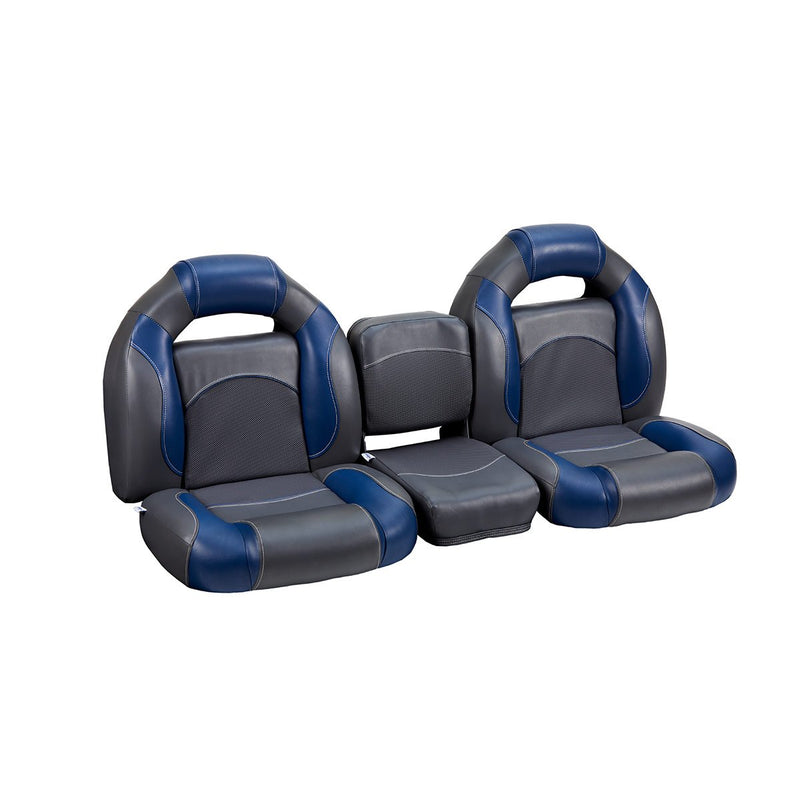

56" Bass Boat Bench Seat Package
- Driver and passenger side two-piece bucket seats
- Back and seat cushions attach separately
- Each bucket seat measures 22" wide

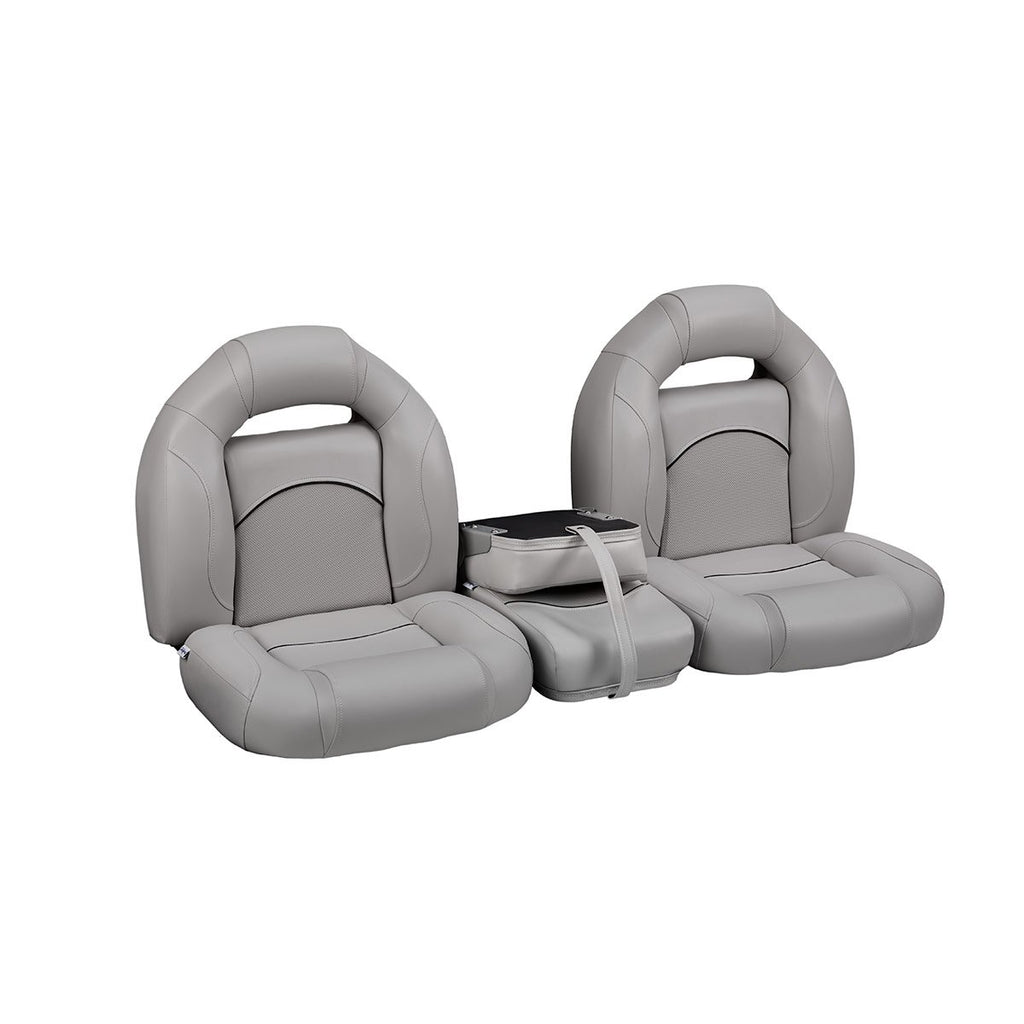

- 12" wide center fold down seat w/ hold down strap
- Center seat folds flat and is designed as a step
Factory Grade Replacement Seats
- 6 year full replacement warranty on upholstery
- 30oz soft to the touch, marine grade seat vinyl
- Custom molded foam cushions won't break down
- Plastic frames with 100% stainless steel hardware
- All mounting hardware is included (stainless)
Stainless Steel Hardware Included:
Note: The pair of bucket seats will arrive in a single package with protective packaging and covered in plastic bags.
1. (2) Aluminum hinges with vinyl covering, pre-installed onto each seat cushion (2 hinge per seat).
2. (4) #12 x 1” stainless screws to attach hinges to seating platform (2 per hinge).
3. (8) #14 x 2” stainless screws to install seat back to rear wall of seating platform (4 per seat back).
Installing Back Rest & Seat Cushions
Note: Installation hardware is attached under boat seat cushions.
1. Remove the temporary plastic edge protectors from each boat seat cushion by pulling them out of the upholstery. This will not harm the seat, simply grab the edge of the plastic protectors and pull them out.
2. Determine the location of the drivers bucket seat and place the backrest against the rear wall of the seating platform. Secure the back rest to the rear wall of the seating platform with provided screws. If necessary drill more holes through the plastic frame for mounting, this will not damage the seat or void any warranty.
* If you have ordered a seat grouping with a center fold down seat make sure you line up all your boat seats on the boat’s platform prior to installation to make sure you have enough room to install each seat.
* We recommend that you drill small pilot holes into your boat before installing the screws. This will prevent damage to the fiberglass. Assuming a 3/4” thick back wall our 2” screws will protrude 1/4” through your back wall of your platform once installed.
3. Line the seat cushion up with the installed back rest and determine the spacing between the seat and back rest. The hinge that is attached to the bottom of each seat cushion allows you to adjust the seat forward or back depending on the depth of your platform. There is a matching vinyl piece that is installed with each hinge, determine the location and screw the hinge and the vinyl to the platform. The vinyl piece will hide the aluminum hinge once it is installed.
4. If you have a center fold down seat, determine where you want it to mount and install it with the attached hinge and vinyl piece just like you did with the bucket seat cushion.
